PostPosted: Wed Oct 21, 2015 11:53 pm    Post subject: Reply with quote

Going to the shop tomorrow night to get the holes drilled in the intake for the bungholios. Laughing
_________________
2001 Focus 2.0 Zetec
stock cams, bolt-ons and tune
15.63@87 MPH 1/4mi

1971 - Chevelle 408 SBC N/A
6.86@102.5 MPH 1/8mi
10.78@122 MPH 1/4mi
Back to top
View user's profile Send private message
SMOKEmUP
PostMaster


Joined: 30 May 2002
Posts: 3169

65097.54 points


1979 Chevrolet Camaro

PostPosted: Thu Oct 22, 2015 11:39 am    Post subject: Reply with quote

Who's doing the work?
_________________
Stop running from your pain and embrace your pain. Your pain is going to be a part of your prize.

I challenge you to push yourself.
Back to top
View user's profile Send private message Visit poster's website
Paul P
Member


Joined: 15 Aug 2002
Posts: 2403
Location: Townsend, Mass.
81574.74 points


1971 Chevrolet Chevelle

PostPosted: Fri Oct 23, 2015 7:12 pm    Post subject: Reply with quote

My friend Gary. He made the stainless cool fan brackets for the car. It is sort of a return favor and he has a digital bridgeport to take care of it. Should be nice. He backed out last night because he had an unexpected funeral to attend. Sunday might be the day now.
_________________
2001 Focus 2.0 Zetec
stock cams, bolt-ons and tune
15.63@87 MPH 1/4mi

1971 - Chevelle 408 SBC N/A
6.86@102.5 MPH 1/8mi
10.78@122 MPH 1/4mi
Back to top
View user's profile Send private message
Paul P
Member


Joined: 15 Aug 2002
Posts: 2403
Location: Townsend, Mass.
81574.74 points


1971 Chevrolet Chevelle

PostPosted: Sun Oct 25, 2015 4:07 pm    Post subject: Reply with quote

Another day wasted. Have to try again next week. When you are getting something done for free I guess waiting is ok.
_________________
2001 Focus 2.0 Zetec
stock cams, bolt-ons and tune
15.63@87 MPH 1/4mi

1971 - Chevelle 408 SBC N/A
6.86@102.5 MPH 1/8mi
10.78@122 MPH 1/4mi
Back to top
View user's profile Send private message
Paul P
Member


Joined: 15 Aug 2002
Posts: 2403
Location: Townsend, Mass.
81574.74 points


1971 Chevrolet Chevelle

PostPosted: Fri Oct 30, 2015 1:12 pm    Post subject: Reply with quote

Some progress last night on the intake. Holes are machined. Will have to make an eyebrow around the holes to allow the bungs to sit down in the hole a bit more.
We used a 3/4 end mill for the pilot hole then the drill bit to finish it out to size.



Half way point



What it looks like now. I will have to take off the cast in bosses that were there because they were no where near in the correct position.



Top View


More to come as things progress.

_________________
2001 Focus 2.0 Zetec
stock cams, bolt-ons and tune
15.63@87 MPH 1/4mi

1971 - Chevelle 408 SBC N/A
6.86@102.5 MPH 1/8mi
10.78@122 MPH 1/4mi
Back to top
View user's profile Send private message
robins44
Member


Joined: 29 Dec 2007
Posts: 632

18797.16 points



PostPosted: Mon Nov 02, 2015 2:45 pm    Post subject: Reply with quote

Looks great, someday i will have a bridgeport!
Back to top
View user's profile Send private message
10sec.et
Member


Joined: 29 Mar 2006
Posts: 3473
Location: Houston,Texas
346658.74 points


1969 Oldsmobile Cutlass

PostPosted: Mon Nov 02, 2015 3:07 pm    Post subject: Reply with quote

haha, yeah beggars cant be choosers. looking good though. gonna be able to get any passes in this year?
_________________
af2 wrote:
It seems we can look at our magical Balls and come up with a fix?

Back to top
View user's profile Send private message
Paul P
Member


Joined: 15 Aug 2002
Posts: 2403
Location: Townsend, Mass.
81574.74 points


1971 Chevrolet Chevelle

PostPosted: Tue Nov 03, 2015 7:33 pm    Post subject: Reply with quote

Track closed Oct 31st. Weather has been really nice. Not sure I agree with that policy every year it varies. Should option to keep it open weather dependent.

I will get it running before the snow flies so making so street blasts is in the cards for sure. Can't wait to feel that top end that was missing.

Twisted Evil
Paul

_________________
2001 Focus 2.0 Zetec
stock cams, bolt-ons and tune
15.63@87 MPH 1/4mi

1971 - Chevelle 408 SBC N/A
6.86@102.5 MPH 1/8mi
10.78@122 MPH 1/4mi
Back to top
View user's profile Send private message
Paul P
Member


Joined: 15 Aug 2002
Posts: 2403
Location: Townsend, Mass.
81574.74 points


1971 Chevrolet Chevelle

PostPosted: Mon Nov 16, 2015 12:39 pm    Post subject: Reply with quote

Rails machined.


Eyebrows cut for better welding access.


They were cut a bit too deep but I was able to place them up about 1/4" above the cut to keep the injectors from sticking into the port.



Welding done outside and inside.





Blended them yesterday. Carbide burr first then cartridge roll cone worked really well for this. Then some red scotch-brite and 320 sand paper to smooth them out.







Injectors worst case are less than 1/8" from sticking into the port. I think that is about right.

_________________
2001 Focus 2.0 Zetec
stock cams, bolt-ons and tune
15.63@87 MPH 1/4mi

1971 - Chevelle 408 SBC N/A
6.86@102.5 MPH 1/8mi
10.78@122 MPH 1/4mi
Back to top
View user's profile Send private message
Paul P
Member


Joined: 15 Aug 2002
Posts: 2403
Location: Townsend, Mass.
81574.74 points


1971 Chevrolet Chevelle

PostPosted: Mon Nov 16, 2015 12:41 pm    Post subject: Reply with quote

Next question is if I glass bead the intake is it worth clear coating it? Anyone had any success with the high temp clears like the one from VHT?
_________________
2001 Focus 2.0 Zetec
stock cams, bolt-ons and tune
15.63@87 MPH 1/4mi

1971 - Chevelle 408 SBC N/A
6.86@102.5 MPH 1/8mi
10.78@122 MPH 1/4mi
Back to top
View user's profile Send private message
Big Dave
Moderator


Joined: 04 Dec 2005
Posts: 2646
Location: Tampa Florida
119973.02 points



PostPosted: Tue Nov 24, 2015 12:34 pm    Post subject: Reply with quote

I did that to my Edelbrock RPM Air Gap but it looked too shinny afterword. I would recommend going with a semi flat clear or just painting it cast aluminum color (seams silly but it seals the aluminum and makes wiping off dirt easier). Gas stains paint or aluminum but with paint at least it can be refreshed and I doubt if injectors leak the way carbs do.

Big Dave
Back to top
View user's profile Send private message
SMOKEmUP
PostMaster


Joined: 30 May 2002
Posts: 3169

65097.54 points


1979 Chevrolet Camaro

PostPosted: Tue Nov 24, 2015 9:26 pm    Post subject: Reply with quote

Looks good. What's next on the to do list?
_________________
Stop running from your pain and embrace your pain. Your pain is going to be a part of your prize.

I challenge you to push yourself.
Back to top
View user's profile Send private message Visit poster's website
Paul P
Member


Joined: 15 Aug 2002
Posts: 2403
Location: Townsend, Mass.
81574.74 points


1971 Chevrolet Chevelle

PostPosted: Wed Nov 25, 2015 10:29 am    Post subject: Reply with quote

Going to machine the rail retainers tonight. Once that is done I will check the port match and blend if needed. I noticed that the ports were not all opened up to the scribe lines. Clearly noticeable in the photo. If it is good I will install the intake.

Things left:
1. Mount the Y-block
2. Run lines from Y-block to the rails. (Figure out what fittings on the rail side to buy likely 90 degree.)
3. Mount the regulator.
4. Run lines from rails to regulator and return line from regulator to hard return line already installed.
5. Run harness through firewall and plug everything in that is located.
6. Mount MAP and Air intake temp sensor in air cleaner base and plug in.
7. Log into the system and set parameters and fire it up.

_________________
2001 Focus 2.0 Zetec
stock cams, bolt-ons and tune
15.63@87 MPH 1/4mi

1971 - Chevelle 408 SBC N/A
6.86@102.5 MPH 1/8mi
10.78@122 MPH 1/4mi
Back to top
View user's profile Send private message
Paul P
Member


Joined: 15 Aug 2002
Posts: 2403
Location: Townsend, Mass.
81574.74 points


1971 Chevrolet Chevelle

PostPosted: Tue Jan 05, 2016 4:13 pm    Post subject: Reply with quote

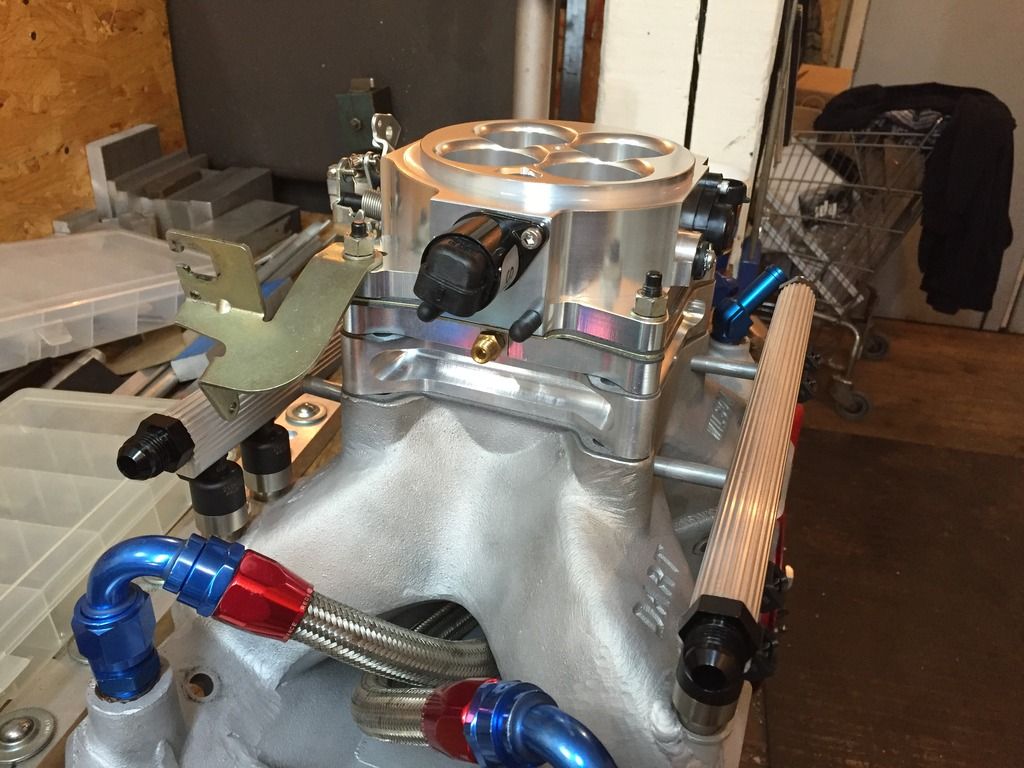

Some of the latest stuff on the intake. Still working on getting all of this sorted before putting it on the car. Had to mill a 2" spacer down to what I needed for height with the new perimeter nitrous plate from Skip White on E-Bay. Added some ball end milling for looks and weigh reduction. I still want to make a bracket on the right side for the nitrous solenoids and MAP sensor which is next.
In no particular order:







_________________
2001 Focus 2.0 Zetec
stock cams, bolt-ons and tune
15.63@87 MPH 1/4mi

1971 - Chevelle 408 SBC N/A
6.86@102.5 MPH 1/8mi
10.78@122 MPH 1/4mi
Back to top
View user's profile Send private message
Paul P
Member


Joined: 15 Aug 2002
Posts: 2403
Location: Townsend, Mass.
81574.74 points


1971 Chevrolet Chevelle

PostPosted: Wed Mar 02, 2016 10:17 pm    Post subject: Reply with quote

Nitrous brackets done.





Intake installed!




Fuel Y-block, Regulator, Lines and harness left.

_________________
2001 Focus 2.0 Zetec
stock cams, bolt-ons and tune
15.63@87 MPH 1/4mi

1971 - Chevelle 408 SBC N/A
6.86@102.5 MPH 1/8mi
10.78@122 MPH 1/4mi
Back to top
View user's profile Send private message
