New 408
Goto page Previous  1, 2, 3, ... 30, 31, 32  Next

Post new topic   Reply to topic    SMOKEmUP.com Forum Index -> Chevy - Small Block Gen 1
View previous topic :: View next topic
Author Message
Paul P
Member


Joined: 15 Aug 2002
Posts: 2403
Location: Townsend, Mass.
81574.74 points


1971 Chevrolet Chevelle

PostPosted: Fri Feb 25, 2011 11:40 pm    Post subject: Reply with quote

12to13-1 compression
With the new lobe designs the intake will be at I think
261@.050 and exhaust at 267.
.690" lift on both with a 108 spread
I'll gladly post the cam card when I get it.

$436.67 with the cast gear option. Shipping is probably a bit more but that is the damage for the cam.

Always have a barrel of VP C12 in the corner of the garage to fuel up. I was mixing 50/50 with the old setup at 11.75to1 this might need straight C12.

_________________
2001 Focus 2.0 Zetec
stock cams, bolt-ons and tune
15.63@87 MPH 1/4mi

1971 - Chevelle 408 SBC N/A
6.86@102.5 MPH 1/8mi
10.78@122 MPH 1/4mi
Back to top
View user's profile Send private message
clay
Moderator


Joined: 24 Nov 2002
Posts: 3209
Location: South Carolina
318129.23 points


1972 Chevrolet Nova

PostPosted: Mon Feb 28, 2011 10:03 pm    Post subject: Reply with quote

Quote:
I got the Dart 17 heads and Intake back from HRD. These guys do top notch work for many of the best out there including all the big names in Nascar and more.

Pictures, pictures, must have pictures........I can't wait until you get it going. Should be nasty sounding with that cam Twisted Evil . Clay

_________________
I have done so much with so little for so long, I can now do anything with nothing.
Back to top
View user's profile Send private message
jeep_406
Member


Joined: 12 Sep 2002
Posts: 1661
Location: Tewksbury, Mass 01876
53123.48 points


1972 Chevrolet Nova

PostPosted: Mon Feb 28, 2011 11:27 pm    Post subject: Reply with quote

Paul,
What times are you thinking you'll run?
Should be deep in the 10's.

Let me know when you're planning on running it. I'd love to be a witness. If you've got a camera I could record your runs for you.

Driving
Back to top
View user's profile Send private message Send e-mail
Paul P
Member


Joined: 15 Aug 2002
Posts: 2403
Location: Townsend, Mass.
81574.74 points


1971 Chevrolet Chevelle

PostPosted: Mon Feb 28, 2011 11:34 pm    Post subject: Reply with quote

Paul said it should pick up a full second so high 9's Low 10's is not out of the question.

Pics should be rotated not sure what is happening there.








_________________
2001 Focus 2.0 Zetec
stock cams, bolt-ons and tune
15.63@87 MPH 1/4mi

1971 - Chevelle 408 SBC N/A
6.86@102.5 MPH 1/8mi
10.78@122 MPH 1/4mi
Back to top
View user's profile Send private message
jeep_406
Member


Joined: 12 Sep 2002
Posts: 1661
Location: Tewksbury, Mass 01876
53123.48 points


1972 Chevrolet Nova

PostPosted: Mon Feb 28, 2011 11:39 pm    Post subject: Reply with quote

Looks good !!
Back to top
View user's profile Send private message Send e-mail
Paul P
Member


Joined: 15 Aug 2002
Posts: 2403
Location: Townsend, Mass.
81574.74 points


1971 Chevrolet Chevelle

PostPosted: Mon Feb 28, 2011 11:43 pm    Post subject: Reply with quote

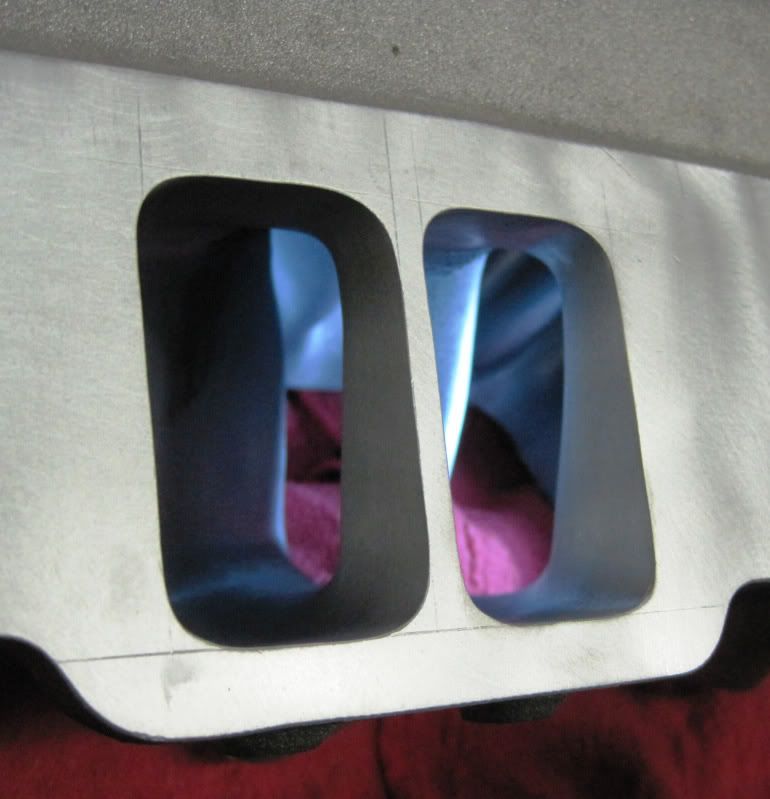

I was surprised at how the intake cross sectional area is maintained throughout the port. That is really hard to do. All hand done besides most people don't realize that CNC port maps have to come from a hand done port not magic or by computer only.... Wink
_________________
2001 Focus 2.0 Zetec
stock cams, bolt-ons and tune
15.63@87 MPH 1/4mi

1971 - Chevelle 408 SBC N/A
6.86@102.5 MPH 1/8mi
10.78@122 MPH 1/4mi
Back to top
View user's profile Send private message
squeeezer
Member


Joined: 02 Mar 2007
Posts: 2427
Location: new richmond WI
191524.76 points


1991 Chevrolet Camaro

PostPosted: Tue Mar 01, 2011 9:27 am    Post subject: Reply with quote

[quote="Paul P"]Paul said it should pick up a full second so high 9's Low 10's is not out of the question.




sounds like some torque converter shinanigans are @ work here

_________________
Back to top
View user's profile Send private message
SMOKEmUP
PostMaster


Joined: 30 May 2002
Posts: 3169

65097.54 points


1979 Chevrolet Camaro

PostPosted: Tue Mar 01, 2011 10:24 am    Post subject: Reply with quote

What are the flow numbers?

What is the dynamic compression ratio?

_________________
Stop running from your pain and embrace your pain. Your pain is going to be a part of your prize.

I challenge you to push yourself.
Back to top
View user's profile Send private message Visit poster's website
Paul P
Member


Joined: 15 Aug 2002
Posts: 2403
Location: Townsend, Mass.
81574.74 points


1971 Chevrolet Chevelle

PostPosted: Tue Mar 01, 2011 1:23 pm    Post subject: Reply with quote

Flow numbers I can post later today might wait till I get the cam to figure out the DCR.

Cam guy said I should be good with the converter I have. The engine characteristics should be similar with a lot of difference on the top end HP due to the increase in air flow. He did say due to the weight of the car that changing it too much in the duration and lobe spread would slow the car down. The new lobe design is worth some more as is and with the increased lift and airflow it should be quite an impressive gain.

_________________
2001 Focus 2.0 Zetec
stock cams, bolt-ons and tune
15.63@87 MPH 1/4mi

1971 - Chevelle 408 SBC N/A
6.86@102.5 MPH 1/8mi
10.78@122 MPH 1/4mi
Back to top
View user's profile Send private message
squeeezer
Member


Joined: 02 Mar 2007
Posts: 2427
Location: new richmond WI
191524.76 points


1991 Chevrolet Camaro

PostPosted: Sun Mar 06, 2011 12:56 pm    Post subject: Reply with quote

what is a dart 17?

im assuming a 17 degree head for starters?? Confused

_________________
Back to top
View user's profile Send private message
Paul P
Member


Joined: 15 Aug 2002
Posts: 2403
Location: Townsend, Mass.
81574.74 points


1971 Chevrolet Chevelle

PostPosted: Sun Mar 06, 2011 10:40 pm    Post subject: Reply with quote

squeeezer wrote:
what is a dart 17?

im assuming a 17 degree head for starters?? Confused


Yes 17 degree valve angle .400" raised runner head. Dart made these back in the mid to late 90s I picked them up with the matching Wilson intake 4150 flange back in Oct of 96 I had them ported by a local guy who could not finish them. Not enough experience I guess they were stalling at .600" lift and the exhaust was not that great either according to HRD. They also have the Brodix port intruder for that normally pesky head bolt that is in the way. Now with that in there the port wall between the intake ports is straight back to the bowl. Money and time have always been issues and the 406 was staying together up until the cam bearing issue so they sat in my closet. You could say I'm coming out of the closet now. Lucky I have been fortunate to sell a lot of my engine components that have been sitting around on Craigslist to pay for most of the new build.

_________________
2001 Focus 2.0 Zetec
stock cams, bolt-ons and tune
15.63@87 MPH 1/4mi

1971 - Chevelle 408 SBC N/A
6.86@102.5 MPH 1/8mi
10.78@122 MPH 1/4mi
Back to top
View user's profile Send private message
af2
Member


Joined: 01 Sep 2003
Posts: 5558
Location: grassvalley, ca
71227.76 points


1933 Willys Coupe

PostPosted: Mon Mar 07, 2011 1:37 am    Post subject: Reply with quote

Nice!!!! Cool
Back to top
View user's profile Send private message
Paul P
Member


Joined: 15 Aug 2002
Posts: 2403
Location: Townsend, Mass.
81574.74 points


1971 Chevrolet Chevelle

PostPosted: Mon Mar 21, 2011 12:36 pm    Post subject: Reply with quote

Pistons are ordered.
Diamond Forged Pistons
4.160" bore
6" rod
3.75" stroke
.200 dome
13.2 to 1 compression
.930" pin
coated skirts
Custom ordered 3 weeks only 2 left!

_________________
2001 Focus 2.0 Zetec
stock cams, bolt-ons and tune
15.63@87 MPH 1/4mi

1971 - Chevelle 408 SBC N/A
6.86@102.5 MPH 1/8mi
10.78@122 MPH 1/4mi
Back to top
View user's profile Send private message
Paul P
Member


Joined: 15 Aug 2002
Posts: 2403
Location: Townsend, Mass.
81574.74 points


1971 Chevrolet Chevelle

PostPosted: Tue Mar 29, 2011 12:22 pm    Post subject: Reply with quote

Here they are. Using the specs for the piston, gasket ect. Compression calculator says 13.179 to 1.


_________________
2001 Focus 2.0 Zetec
stock cams, bolt-ons and tune
15.63@87 MPH 1/4mi

1971 - Chevelle 408 SBC N/A
6.86@102.5 MPH 1/8mi
10.78@122 MPH 1/4mi
Back to top
View user's profile Send private message
jeep_406
Member


Joined: 12 Sep 2002
Posts: 1661
Location: Tewksbury, Mass 01876
53123.48 points


1972 Chevrolet Nova

PostPosted: Tue Mar 29, 2011 5:44 pm    Post subject: Reply with quote

Looks good.
I believe Golen's Engine uses Diamond Pistons in their LS engines. Is that Compression with a 64 cc head?
As an Oldtimer I'm always surprised at the length of the piston skirts.
Back to top
View user's profile Send private message Send e-mail
