pushrods
Goto page 1, 2, 3  Next

Post new topic   Reply to topic    SMOKEmUP.com Forum Index -> Chevy - Small Block Gen 1
View previous topic :: View next topic
Author Message
squeeezer
Member


Joined: 02 Mar 2007
Posts: 2427
Location: new richmond WI
191524.76 points


1991 Chevrolet Camaro

PostPosted: Thu Apr 01, 2010 2:09 am    Post subject: pushrods Reply with quote

at what point do you guys upgrade from 5/16 to 3/8 pushrods in a sbc????

im gonna measure for pushrods soon just wondering before i order

_________________
Back to top
View user's profile Send private message
10sec.et
Member


Joined: 29 Mar 2006
Posts: 3473
Location: Houston,Texas
346658.74 points


1969 Oldsmobile Cutlass

PostPosted: Thu Apr 01, 2010 2:33 am    Post subject: Reply with quote

seems the general consensus is "the biggest you can fit". there has to be some sort of scientific means of figuring it out. a formula perhaps ? hell, i would like to use 5/16 to give me more room to port my heads.
_________________
af2 wrote:
It seems we can look at our magical Balls and come up with a fix?

Back to top
View user's profile Send private message
William Jones
Member


Joined: 30 Jan 2006
Posts: 823
Location: Lake city, FL
28541.86 points


1971 Ford Mustang

PostPosted: Thu Apr 01, 2010 10:42 am    Post subject: Reply with quote

I would say when you step up to a mechanical roller or turn more than 6000 rpm would be good starting points. For the bigger pushrod.

Bam

_________________
Take the horse out off the barn and let her RUN BABY RUN!!!!!

92 LX 454ci Clevor 9.24@142.53 N/A
71 Mach1 454ci Clevor 10.16@134 N/A 3850lbs race weight "Lost in fire"
03 Cobra Bone stock 12.42
68 Falcon 363ci 10.55@126 N/A
95 GT 363ci 11.08@118 N/A
Back to top
View user's profile Send private message
squeeezer
Member


Joined: 02 Mar 2007
Posts: 2427
Location: new richmond WI
191524.76 points


1991 Chevrolet Camaro

PostPosted: Thu Apr 01, 2010 11:54 am    Post subject: Reply with quote

[quote="William Jones"]I would say when you step up to a mechanical roller

yes


or turn more than 6000 rpm would be good starting points. For the bigger pushrod.


and yes

_________________
Back to top
View user's profile Send private message
jeep_406
Member


Joined: 12 Sep 2002
Posts: 1661
Location: Tewksbury, Mass 01876
53123.48 points


1972 Chevrolet Nova

PostPosted: Thu Apr 01, 2010 11:27 pm    Post subject: Reply with quote

6000 rpm is a good number no matter what type of cam you're using. I like overkill whenever possible Driving
Back to top
View user's profile Send private message Send e-mail
Big Dave
Moderator


Joined: 04 Dec 2005
Posts: 2646
Location: Tampa Florida
119973.02 points



PostPosted: Fri Apr 02, 2010 2:02 pm    Post subject: Reply with quote

I always go for a bigger push rod as it is only $20 bucks for the push rod guide plates and I generally order custom length push rods any way which all cost the same despite the size difference.

I have bent far to many stock 3/8 inch diameter push rods in a BBC to ever consider running anything smaller than a 7/16" push rod and up to a 1/2" push rod for a race motor (requires titanium valves and keepers, accuated by a solid roller cam, to be considered a race motor in my opinion). My 406 SBC uses 3/8th inch chromemoly CompCams push rods with raised CompCams guide plates in my Lunati sold roller cammed daily driver.

Big Dave
Back to top
View user's profile Send private message
squeeezer
Member


Joined: 02 Mar 2007
Posts: 2427
Location: new richmond WI
191524.76 points


1991 Chevrolet Camaro

PostPosted: Fri Apr 02, 2010 4:52 pm    Post subject: Reply with quote

why a raised guideplate??
_________________
Back to top
View user's profile Send private message
af2
Member


Joined: 01 Sep 2003
Posts: 5558
Location: grassvalley, ca
71227.76 points


1933 Willys Coupe

PostPosted: Fri Apr 02, 2010 8:48 pm    Post subject: Reply with quote

What spring pressure you gona run with Paul's Lunati??
Back to top
View user's profile Send private message
lun40119
Member


Joined: 22 Oct 2008
Posts: 624
Location: Wisconsin
4740.92 points


1967 Chevrolet Chevelle

PostPosted: Fri Apr 02, 2010 10:05 pm    Post subject: Reply with quote

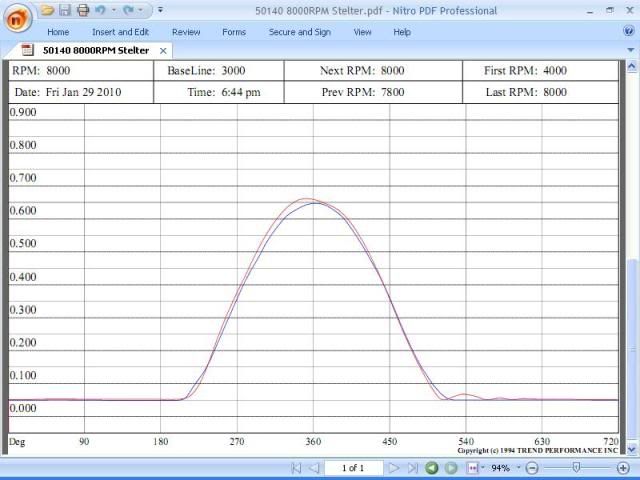

Here is a couple of screen shops from the Spin Tron stuff I had done on my cam from last year. It is old news though, I will be running a different cam. For reference, this is a 3.8 .080 wall Trend pushrod, 240ish at the seat.

Take what you can from these couple graphs, if you want more, I would be willing to share all that I have.......Blue line is the valve base, and red is the actual valve trace with the laser. Quick side note, I'll be running 7/16 pushrods this year with a .450 offset rocker. Wink




_________________
Jake

Drag Week 2012 1st Place SB/NA
Drag Week 2011 2nd Place SB/NA
http://www.youtube.com/watch?v=skLbhe2CBAU
Back to top
View user's profile Send private message
af2
Member


Joined: 01 Sep 2003
Posts: 5558
Location: grassvalley, ca
71227.76 points


1933 Willys Coupe

PostPosted: Fri Apr 02, 2010 10:24 pm    Post subject: Reply with quote

Jake,
For what it's worth.
Argggggggg
Back to top
View user's profile Send private message
squeeezer
Member


Joined: 02 Mar 2007
Posts: 2427
Location: new richmond WI
191524.76 points


1991 Chevrolet Camaro

PostPosted: Fri Apr 02, 2010 11:08 pm    Post subject: Reply with quote

af2 wrote:
What spring pressure you gona run with Paul's Lunati??






it should be a tad over 180# seat
i will need to measure for exact #'s

and its a crower btw

_________________


Last edited by squeeezer on Fri Apr 02, 2010 11:17 pm; edited 1 time in total
Back to top
View user's profile Send private message
lun40119
Member


Joined: 22 Oct 2008
Posts: 624
Location: Wisconsin
4740.92 points


1967 Chevrolet Chevelle

PostPosted: Fri Apr 02, 2010 11:08 pm    Post subject: Reply with quote

Not too sure what your getting at.....the fact that you saw this stuff on st, or the fact that no matter how my times the 5/16---3/8 debate has been going on, people still ask the question.

Which is it gramps???

_________________
Jake

Drag Week 2012 1st Place SB/NA
Drag Week 2011 2nd Place SB/NA
http://www.youtube.com/watch?v=skLbhe2CBAU
Back to top
View user's profile Send private message
squeeezer
Member


Joined: 02 Mar 2007
Posts: 2427
Location: new richmond WI
191524.76 points


1991 Chevrolet Camaro

PostPosted: Fri Apr 02, 2010 11:13 pm    Post subject: Reply with quote

base v.s. trace????

i dont know

is it showing deflection @ the pushrod????

_________________
Back to top
View user's profile Send private message
af2
Member


Joined: 01 Sep 2003
Posts: 5558
Location: grassvalley, ca
71227.76 points


1933 Willys Coupe

PostPosted: Fri Apr 02, 2010 11:27 pm    Post subject: Reply with quote

squeeezer wrote:
af2 wrote:
What spring pressure you gona run with Paul's Lunati??






it should be a tad over 180# seat
i will need to measure for exact #'s

and its a crower btw


This is exactly where I am coming from!!

I still am not convinced my 800 over needs more pushrod.
I will say at 180 you could run 5/16" but that is me!


Jon, do not spin the thing above 7500 or you will be sorry.

Jake, Spintron and all I still wonder how all the old guys spun the things 10,000 with 5/16 pushers and they lived. That is all I am saying.
Back to top
View user's profile Send private message
Big Dave
Moderator


Joined: 04 Dec 2005
Posts: 2646
Location: Tampa Florida
119973.02 points



PostPosted: Fri Apr 02, 2010 11:38 pm    Post subject: Reply with quote

Well from one old guy; I can say that not not all of them lived. And of those that held together the technology was changing fast enough that they were often pulled out of service before they were spread across the strip and replaced by another more promising combination as parts were relatively cheap when all you had was mass produced factory parts.

Big Dave
Back to top
View user's profile Send private message
