View previous topic :: View next topic |
Author |
Message |
10sec.et Member

Joined: 29 Mar 2006 Posts: 3477 Location: Houston,Texas 346819.60 points
1969 Oldsmobile Cutlass
|
Posted: Wed Jul 29, 2015 12:20 am Post subject: |
|
|
Holley probably has the harness ready to plug in. thats one of the great things about that system. i can check into it if you need me to. _________________
af2 wrote: | It seems we can look at our magical Balls and come up with a fix?
|
|
|
Back to top |
|
 |
SMOKEmUP PostMaster

Joined: 30 May 2002 Posts: 3169
65097.54 points
1979 Chevrolet Camaro
|
Posted: Wed Jul 29, 2015 12:40 pm Post subject: |
|
|
Thanks for the offer but I can take care of it. _________________ Stop running from your pain and embrace your pain. Your pain is going to be a part of your prize.
I challenge you to push yourself. |
|
Back to top |
|
 |
Paul P Member

Joined: 15 Aug 2002 Posts: 2408 Location: Townsend, Mass. 81731.10 points
1971 Chevrolet Chevelle
|
Posted: Wed Sep 02, 2015 12:16 pm Post subject: |
|
|
Getting one of these systems too. Just have to get the $$ for it. Holley 550-500 Universal system without injectors. Fitting up the manifold with bungs and fitting the rails will be one of the tasks that I am not looking forward to. Keith is this something you could do in your shop?
Paul _________________ 2001 Focus 2.0 Zetec
stock cams, bolt-ons and tune
15.63@87 MPH 1/4mi
1971 - Chevelle 408 SBC N/A
6.86@102.5 MPH 1/8mi
10.78@122 MPH 1/4mi
 |
|
Back to top |
|
 |
10sec.et Member

Joined: 29 Mar 2006 Posts: 3477 Location: Houston,Texas 346819.60 points
1969 Oldsmobile Cutlass
|
Posted: Wed Sep 02, 2015 1:42 pm Post subject: |
|
|
Paul P wrote: | Getting one of these systems too. Just have to get the $$ for it. Holley 550-500 Universal system without injectors. Fitting up the manifold with bungs and fitting the rails will be one of the tasks that I am not looking forward to. Keith is this something you could do in your shop?
Paul |
im sure. although, it might be cheaper to buy a manifold already setup. or is yours ported and matched to the heads? _________________
af2 wrote: | It seems we can look at our magical Balls and come up with a fix?
|
|
|
Back to top |
|
 |
Paul P Member

Joined: 15 Aug 2002 Posts: 2408 Location: Townsend, Mass. 81731.10 points
1971 Chevrolet Chevelle
|
Posted: Wed Sep 02, 2015 3:59 pm Post subject: |
|
|
It is the raised runner Wilson intake for the Dart 17s. Yes it is also port matched. Kind of stuck there. _________________ 2001 Focus 2.0 Zetec
stock cams, bolt-ons and tune
15.63@87 MPH 1/4mi
1971 - Chevelle 408 SBC N/A
6.86@102.5 MPH 1/8mi
10.78@122 MPH 1/4mi
 |
|
Back to top |
|
 |
Paul P Member

Joined: 15 Aug 2002 Posts: 2408 Location: Townsend, Mass. 81731.10 points
1971 Chevrolet Chevelle
|
Posted: Wed Sep 02, 2015 5:57 pm Post subject: |
|
|
What else do I need besides injectors and fuel pump (already purchased) if I purchase the Holley 550-500 system? Distributor, crank trigger? Are the fuel rails big enough? _________________ 2001 Focus 2.0 Zetec
stock cams, bolt-ons and tune
15.63@87 MPH 1/4mi
1971 - Chevelle 408 SBC N/A
6.86@102.5 MPH 1/8mi
10.78@122 MPH 1/4mi
 |
|
Back to top |
|
 |
10sec.et Member

Joined: 29 Mar 2006 Posts: 3477 Location: Houston,Texas 346819.60 points
1969 Oldsmobile Cutlass
|
Posted: Wed Sep 02, 2015 10:55 pm Post subject: |
|
|
a crank trigger certainly is nice but whatever ignition you currently have should work fine. ill have to get back into my laptop to be sure but i think it will work right out of the MSD.
you don't need anything special on the fuel rails. we use different ones depending on the engine. we often use the stock fuel rail on some of the LS stuff.
as far as manifold goes, i talked to Jeff. that's something we would have Don Hardy do. if you're interested in that, i can send Donald a text tomorrow and see what he says. he can probably tell me what injectors, with the build info.
im not sure exactly what comes in that kit. does it have the throttle body? man, i need to pay more attention to whats in those boxes  _________________
af2 wrote: | It seems we can look at our magical Balls and come up with a fix?
|
|
|
Back to top |
|
 |
Paul P Member

Joined: 15 Aug 2002 Posts: 2408 Location: Townsend, Mass. 81731.10 points
1971 Chevrolet Chevelle
|
Posted: Thu Sep 03, 2015 10:10 am Post subject: |
|
|
We'll find out soon. You would not believe the deal I got. Autozone of all places carries the Holley 550-500 Universal system and had a 20% off home orders over $100. I called Summit for a price match and got the system delivered for $1697.36! Sweet deal . The kit does have the throttle body. Comes pretty much complete except for fuel pump, injectors and distributor. Bungs and rails are in the kit. _________________ 2001 Focus 2.0 Zetec
stock cams, bolt-ons and tune
15.63@87 MPH 1/4mi
1971 - Chevelle 408 SBC N/A
6.86@102.5 MPH 1/8mi
10.78@122 MPH 1/4mi
 |
|
Back to top |
|
 |
10sec.et Member

Joined: 29 Mar 2006 Posts: 3477 Location: Houston,Texas 346819.60 points
1969 Oldsmobile Cutlass
|
Posted: Thu Sep 03, 2015 1:46 pm Post subject: |
|
|
awesome!
let me know if you need that intake taken care of. _________________
af2 wrote: | It seems we can look at our magical Balls and come up with a fix?
|
|
|
Back to top |
|
 |
10sec.et Member

Joined: 29 Mar 2006 Posts: 3477 Location: Houston,Texas 346819.60 points
1969 Oldsmobile Cutlass
|
Posted: Thu Sep 03, 2015 4:26 pm Post subject: |
|
|
open "help" in the tuning software and go to "wiring diagrams & manuals". in section 8, it illustrates all your options for ignition. i would DEFINITELY set it up with timing control. _________________
af2 wrote: | It seems we can look at our magical Balls and come up with a fix?
|
|
|
Back to top |
|
 |
Paul P Member

Joined: 15 Aug 2002 Posts: 2408 Location: Townsend, Mass. 81731.10 points
1971 Chevrolet Chevelle
|
Posted: Thu Sep 03, 2015 4:45 pm Post subject: |
|
|
I found a local source for the intake. Forgot about this friend of mine with a bridge port that can do it. I'll post some pics when I get going on that. _________________ 2001 Focus 2.0 Zetec
stock cams, bolt-ons and tune
15.63@87 MPH 1/4mi
1971 - Chevelle 408 SBC N/A
6.86@102.5 MPH 1/8mi
10.78@122 MPH 1/4mi
 |
|
Back to top |
|
 |
10sec.et Member

Joined: 29 Mar 2006 Posts: 3477 Location: Houston,Texas 346819.60 points
1969 Oldsmobile Cutlass
|
Posted: Thu Sep 03, 2015 10:27 pm Post subject: |
|
|
always good to have friends with a Bridgeport.  _________________
af2 wrote: | It seems we can look at our magical Balls and come up with a fix?
|
|
|
Back to top |
|
 |
Paul P Member

Joined: 15 Aug 2002 Posts: 2408 Location: Townsend, Mass. 81731.10 points
1971 Chevrolet Chevelle
|
Posted: Thu Sep 17, 2015 12:35 pm Post subject: |
|
|
Just ordered the last batch of parts for this change over. Might be a few things I will buy locally like -10 line and 10 gauge wire since it only has 12 gauge back to the pump from the relay with the current system. I will do some before and after pics maybe during the install. _________________ 2001 Focus 2.0 Zetec
stock cams, bolt-ons and tune
15.63@87 MPH 1/4mi
1971 - Chevelle 408 SBC N/A
6.86@102.5 MPH 1/8mi
10.78@122 MPH 1/4mi
 |
|
Back to top |
|
 |
Paul P Member

Joined: 15 Aug 2002 Posts: 2408 Location: Townsend, Mass. 81731.10 points
1971 Chevrolet Chevelle
|
Posted: Wed Sep 23, 2015 11:57 am Post subject: |
|
|

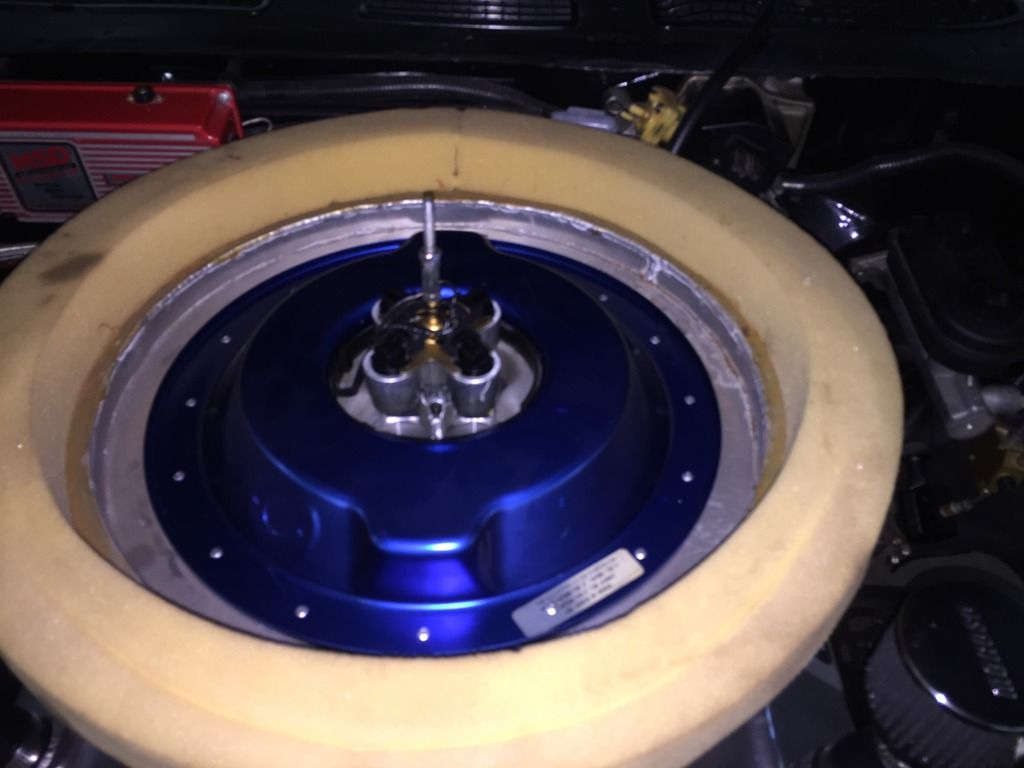

Pump is plumbed out back except for the line from the tank to the trunk floor. Had to order 3 ft of -10 line which is coming this week. Doing some electrical now running the #10 primary wire with circuit breaker from the battery post up front to the pump in the back. Real pain in the ass removing the original #12 wire and then running the new one. Should be all buttoned up tonight. I did order some VooDoo flexible #10 wire off ebay to do this but it is complete shit. Did not weigh anything did not look to be up to the task of delivering enough current to the pump. Had to just suck it up and buy primary at the parts store. ECU has to be run direct to the battery in the trunk anyway so I needed some for that too. Mounting the ECU in the car and getting power to it is next. After that is the Y splitter for the fuel feed to the rails and the regulator/return. I have an idea of where I want them. After that I have to pull the intake and have it machined and welded for bungholios. I want this bitch running before the snow flies. Should be a huge difference. I did take pictures of that projection with the air filter base on it. There is no way that enough air was flowing into the engine. Too much in the way. The new pod doesn't even have those black aerodynamic covers on them just plugs and a lot of flat space for the air to run into while trying to enter the engine.
 _________________ 2001 Focus 2.0 Zetec
stock cams, bolt-ons and tune
15.63@87 MPH 1/4mi
1971 - Chevelle 408 SBC N/A
6.86@102.5 MPH 1/8mi
10.78@122 MPH 1/4mi
 |
|
Back to top |
|
 |
10sec.et Member

Joined: 29 Mar 2006 Posts: 3477 Location: Houston,Texas 346819.60 points
1969 Oldsmobile Cutlass
|
Posted: Wed Sep 23, 2015 9:58 pm Post subject: |
|
|
it will be a night and day difference with the Holley EFI. _________________
af2 wrote: | It seems we can look at our magical Balls and come up with a fix?
|
|
|
Back to top |
|
 |
|
