| View previous topic :: View next topic |
| Author |
Message |
clay
Moderator
Joined: 24 Nov 2002
Posts: 3006
Location: South Carolina
310483.27 points
1972 Chevrolet Nova
|
 Posted: Sun Mar 04, 2012 5:38 pm Post subject: |
 |
|
| Quote: | | For what it is worth the kit is $1000 less than a welded set. |
That's worth a crapload. Saying you built them yourself is worth a lot also. Clay
_________________
I have done so much with so little for so long, I can now do anything with nothing. |
|
| Back to top |
|
 |
Paul P
Member
Joined: 15 Aug 2002
Posts: 1945
Location: Townsend, Mass.
67030.90 points
1971 Chevrolet Chevelle
|
| Posted: Mon Mar 05, 2012 11:03 am Post subject: |
|
|
| clay wrote: | | Quote: | | For what it is worth the kit is $1000 less than a welded set. |
That's worth a crapload. Saying you built them yourself is worth a lot also. Clay |
Exactly!
_________________
2001 Focus 2.0 Zetec
15.63@87 MPH 1/4mi
1971 - Chevelle 408 SBC N.A.
6.95@98.6 MPH 1/8mi
10.97@121 MPH 1/4mi
 |
|
| Back to top |
|
|
Paul P
Member
Joined: 15 Aug 2002
Posts: 1945
Location: Townsend, Mass.
67030.90 points
1971 Chevrolet Chevelle
|
| Posted: Tue Mar 20, 2012 9:09 am Post subject: |
|
|
Had some more time to address the headers.
Drivers side is the most difficult oddly.
Number 1 is cut now to be re clocked at the weld. The weld i am referring to is on the #1 pipe after it runs behind all the #3 and #7 pipes in this view. This will allow the whole set of pipes to be moved back towards the rear of the car for frame clearance.
I'm done with on the motor at this point it is going in the car for the final fitment.
_________________
2001 Focus 2.0 Zetec
15.63@87 MPH 1/4mi
1971 - Chevelle 408 SBC N.A.
6.95@98.6 MPH 1/8mi
10.97@121 MPH 1/4mi
|
|
| Back to top |
|
|
Paul P
Member
Joined: 15 Aug 2002
Posts: 1945
Location: Townsend, Mass.
67030.90 points
1971 Chevrolet Chevelle
|
| Posted: Tue Mar 20, 2012 11:33 pm Post subject: |
|
|
Motor is in for final fab work! I'm squeaking in a little time every evening.
_________________
2001 Focus 2.0 Zetec
15.63@87 MPH 1/4mi
1971 - Chevelle 408 SBC N.A.
6.95@98.6 MPH 1/8mi
10.97@121 MPH 1/4mi
|
|
| Back to top |
|
|
af2
Member
Joined: 01 Sep 2003
Posts: 5258
Location: grassvalley, ca
62454.74 points
1933 Willys Coupe
|
| Posted: Wed Mar 21, 2012 12:35 am Post subject: |
|
|
Paul, Looks good!
You might have it running before us. |
|
| Back to top |
|
|
Paul P
Member
Joined: 15 Aug 2002
Posts: 1945
Location: Townsend, Mass.
67030.90 points
1971 Chevrolet Chevelle
|
| Posted: Fri Apr 06, 2012 10:15 am Post subject: |
|
|

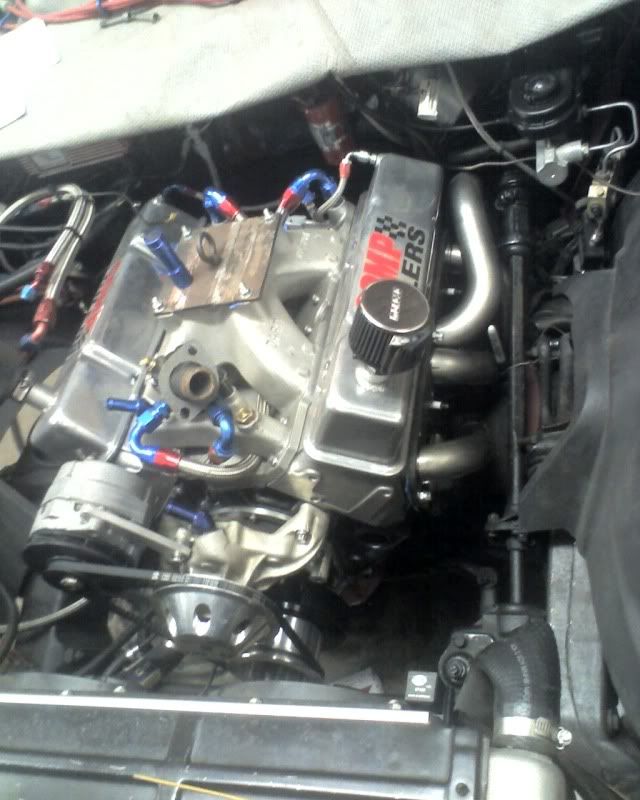

Progress!
Fitted the passenger side tubes up to the flanges and clamped them together last night. Just tacked the primaries upper and lower together to make sure nothing hits and they drop low enough. These heads are 3/4" higher on the exhaust than stock so drop is critical too.
Now that both sides are fitted and looking ok next step will be to pull the motor and get everything tacked to the head flange.
_________________
2001 Focus 2.0 Zetec
15.63@87 MPH 1/4mi
1971 - Chevelle 408 SBC N.A.
6.95@98.6 MPH 1/8mi
10.97@121 MPH 1/4mi
|
|
| Back to top |
|
|
jeep_406
Member
Joined: 12 Sep 2002
Posts: 1621
Location: Tewksbury, Mass 01876
51773.50 points
1972 Chevrolet Nova
|
| Posted: Fri Apr 06, 2012 10:40 am Post subject: |
|
|
| Looking good, Paul. Any timetable on running at the track? |
|
| Back to top |
|
|
Paul P
Member
Joined: 15 Aug 2002
Posts: 1945
Location: Townsend, Mass.
67030.90 points
1971 Chevrolet Chevelle
|
| Posted: Fri Apr 06, 2012 12:31 pm Post subject: |
|
|
I might actually get up there soon with my Focus just to try it out before cams and NOS.
Once the headers are done I will send them out to be coated. After that there will be some tuning to see if I have enough fuel delivery with the Pro-Jection jacked up to 22psi. I do have the Innovative MTX-L WB O2 to check this out.
I guess maybe May or June for the track depending on how things go.
_________________
2001 Focus 2.0 Zetec
15.63@87 MPH 1/4mi
1971 - Chevelle 408 SBC N.A.
6.95@98.6 MPH 1/8mi
10.97@121 MPH 1/4mi
|
|
| Back to top |
|
|
af2
Member
Joined: 01 Sep 2003
Posts: 5258
Location: grassvalley, ca
62454.74 points
1933 Willys Coupe
|
| Posted: Fri Apr 06, 2012 2:33 pm Post subject: |
|
|
Paul, nice work!!
Very clean install on the transfer hoses also. |
|
| Back to top |
|
|
10sec.et
Member
Joined: 29 Mar 2006
Posts: 3100
Location: Houston,Texas
334625.24 points
1969 Oldsmobile Cutlass
|
| Posted: Sat Apr 07, 2012 2:25 am Post subject: |
|
|
| Paul P wrote: |
|
nice work!!!
however, you may want to change that grease filled steering coupler at the bottom of the steering column. with a header tube really close, it heats up, squirts out grease and catches on fire. ask me how i know..........   .
_________________
| af2 wrote: | It seems we can look at our magical Balls and come up with a fix?
|
|
|
| Back to top |
|
|
Paul P
Member
Joined: 15 Aug 2002
Posts: 1945
Location: Townsend, Mass.
67030.90 points
1971 Chevrolet Chevelle
|
| Posted: Sat Apr 07, 2012 10:52 am Post subject: |
|
|
| af2 wrote: | Paul, nice work!!
Very clean install on the transfer hoses also. |
Thanks it was a bit of a PITA but they do fit nice. I might slip insulation over them to prevent them from heating the manifold.
| 10sec.et wrote: | nice work!!!
however, you may want to change that grease filled steering coupler at the bottom of the steering column. with a header tube really close, it heats up, squirts out grease and catches on fire. ask me how i know.......... Shocked Head Bang . |
Thanks x 2! Header wrap on things like this and the transmission lines work well. Thanks that is something that could happen to that grease bladder....
By the way take a look at the homemade motor lift plate. That is 3 strips of 1/4" plate that I welded up with the Lincoln. I do have a lot of those lifting rings left lying around if anyone wants one. I have 2 sizes, this one and a larger thicker one. They are something that comes standard on telecom equipment racks and are very strong.
Paul
_________________
2001 Focus 2.0 Zetec
15.63@87 MPH 1/4mi
1971 - Chevelle 408 SBC N.A.
6.95@98.6 MPH 1/8mi
10.97@121 MPH 1/4mi
|
|
| Back to top |
|
|
10sec.et
Member
Joined: 29 Mar 2006
Posts: 3100
Location: Houston,Texas
334625.24 points
1969 Oldsmobile Cutlass
|
| Posted: Sun Apr 08, 2012 12:42 am Post subject: |
|
|
| Paul P wrote: | | Header wrap on things like this and the transmission lines work well. |
dont forget to wrap that Sharpie too
_________________
| af2 wrote: | It seems we can look at our magical Balls and come up with a fix?
|
|
|
| Back to top |
|
|
Paul P
Member
Joined: 15 Aug 2002
Posts: 1945
Location: Townsend, Mass.
67030.90 points
1971 Chevrolet Chevelle
|
| Posted: Sun Apr 08, 2012 10:57 am Post subject: |
|
|
| 10sec.et wrote: | | dont forget to wrap that Sharpie too Laughing Poke |
That is my second set of hands holding the pipes in the flange up top.
Good catch to even notice it....
I want to get these coated after I'm done. I have found a local business to do it up in Hamstead, NH Pro Finishing.
http://www.profinishinginc.com/services/ceramic-coating.php
Any others in the New England area that you guys know of would be appreciated. My contribution to the local US economy...
_________________
2001 Focus 2.0 Zetec
15.63@87 MPH 1/4mi
1971 - Chevelle 408 SBC N.A.
6.95@98.6 MPH 1/8mi
10.97@121 MPH 1/4mi
|
|
| Back to top |
|
|
Paul P
Member
Joined: 15 Aug 2002
Posts: 1945
Location: Townsend, Mass.
67030.90 points
1971 Chevrolet Chevelle
|
| Posted: Wed Apr 11, 2012 11:30 pm Post subject: |
|
|
| jeep_406 wrote: | Wow Paul,
That's some cam. How do you think it will run on the street?
How much converter are you running?
Gene Gerry |
Gene,
I looked through this post and it goes back over a year now which is embarrassing that it is taking me so long to get this thing together.
I never answered your question back on April 3, 2011.
It had good street manners before I don't think it should be any different. The converter is an old TCI 2513 9" S.B.P. Custom. It stalls at about 4000 on the transbrake.
Anyone could drive it very easily as long as you don't whack the throttle....
Part number sheet I have in the box dated Aug 1 1989 says effective price list as of November 1990. New part number is 251300 which is still good.
Summit has them for $1419.95.
Jegs a lot less at $1213.99.
I paid $702 back then for it.
It is a good converter for street strip motors of this type.
Yes this has served me well! Only maybe 15k miles on it total.
_________________
2001 Focus 2.0 Zetec
15.63@87 MPH 1/4mi
1971 - Chevelle 408 SBC N.A.
6.95@98.6 MPH 1/8mi
10.97@121 MPH 1/4mi
|
|
| Back to top |
|
|
William Jones
Member
Joined: 30 Jan 2006
Posts: 749
Location: Lake city, FL
26057.54 points
1971 Ford Mustang
|
| Posted: Fri Apr 13, 2012 12:24 am Post subject: |
|
|
Looking good Paul getting close.
Bam
_________________
Take the horse out off the barn and let her RUN BABY RUN!!!!!
92 LX 454ci Clevor 9.24@142.53 N/A
71 Mach1 454ci Clevor 10.16@134 N/A 3850lbs race weight "Lost in fire"
03 Cobra Bone stock 12.42 @113
www.ponyexpressracing.com |
|
| Back to top |
|
|
|
